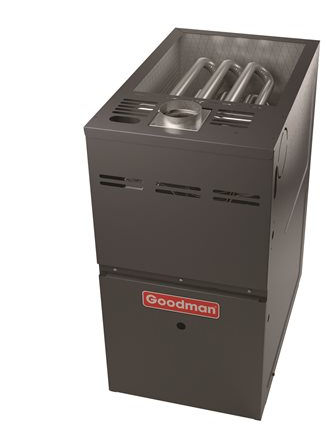

GOODMAN GME80805DN Multi-Speed Upflow / Horizontal Gas Furnace Multi-Position 80% AFUE 80,000 BTU

GOODMAN GME80805DN Multi-Speed Upflow / Horizontal Gas Furnace Multi-Position 80% AFUE 80,000 BTU

$916.00
/
GOODMAN GME80805DN Multi-Speed Upflow / Horizontal
Gas Furnace Multi-Position 80% AFUE 80,000 BTU

Product Overview

  • Dual diameter tubular heat exchanger
  • Two stage gas valve that allows installer to turn on two stage operation with the flip of a dipswitch
  • Energy efficient circulator motor (EEM)
  • 115V silicon nitride igniter designed for long igniter life
  • Furnace control board with self diagnostics, color coded low voltage terminals, and provisions for electronic air cleaner and 24 volt humidifiers
  • Control board stores the last five diagnostic codes in memory; simple push button activation outputs the fault history to a flashing red LED
  • Low constant fan allows homeowner to activate the low heat speed to efficiently circulate air throughout the home
  • Self adjusting feature automatically adjusts furnace to high or low stage operation based on outside temperature without an outdoor temperature sensor
  • Fully insulated, heavy guage steel cabinet with durable baked enamel finish
  • Foil faced insulation lines the heat exchanger
  • Designed for multi position installation: upflow, horizontal left or right
  • Removable bottom for side or bottom return applications
  • Convenient left or right connection for gas/electric service
  • Coil and furnace fit flush for most installations
  • AFUE: 80%
  • BTU/H Input: 80,000
  • BTU/H Output: 64,000
  • Max. Circuit Amps.: 14.8
  • Vent Diameter: 4"
  • Nom. Tons: 5
  • Height: 33-3/8"
  • Depth: 28"
  • Width: 24-1/2"
  • Weight: 123 LB

Warranty:

  • The heat exchanger on this furnace is covered by a Lifetime Limited Warranty to the original, registered homeowner and if it fails during the first 10 years of ownership, we will replace the entire unit. This furnace also has a 10-Year Limited Parts Warranty on all functional parts.

Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, safe operation, adherence to federal, state and local codes and for valid warranty; see installation guide for more details.

Professional installation recommended
