Product Overview
Standard Features:
- Dual-diameter tubular heat exchanger.
- Two-stage gas valve that allows installer to turn on two-stage operation with the flip of a dipswitch.
- Multi-Speed Energy-efficient circulator motor (EEM)
- 115V Silicon Nitride igniter designed for long igniter life.
- Furnace control board with self-diagnostics, color-coded low-voltage terminals, and provisions for electronic air cleaner and 24-volt humidifiers.
- Control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
- Low constant fan allows homeowner to activate the low heat speed to efficiently circulate air throughout the home.
- Self-adjusting feature automatically adjusts furnace to high- or low-stage operation based on outside temperature without an outdoor temperature sensor
- Cabinet Features:
- Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish.
- Foil-faced insulation lines the heat exchanger.
- Designed for multi-position installation: upflow, horizontal left or right.
- Removable bottom for side- or bottom-return applications.
- Convenient left or right connection for gas/electric service.
- Top gas connection on most models.
- Coil and furnace fit flush for most installations.

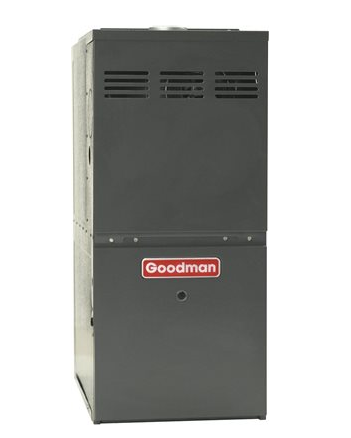

- Goodman Model # GME80805CXAA is the exact replacement for Model # GME80905CXCB
Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, safe operation, adherence to federal, state and local codes and for valid warranty; see installation guide for more details.
Professional installation recommended.
