Product Overview

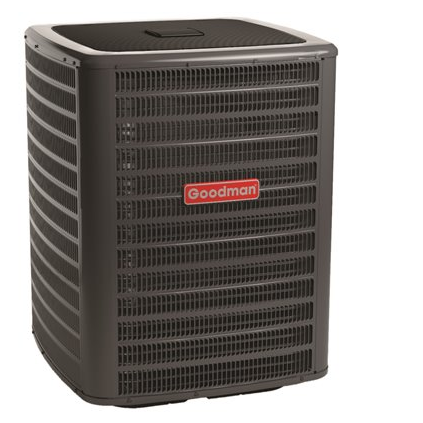

- 16 SEER Split System Heat Pump
- High-efficiency scroll compressor
- SmartShift® technology to ensure quiet reliable defrost
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- High- and low-pressure switches
- Service valves with sweat connections and easy access to gauge ports
- Copper tube/enhanced aluminum fin coil
- Fully charged for 15 of tubing length
- Contactor with lug connection
- Ground lug connection
- AHRI Certified; ETL Listed
- Goodman® brand sound control top design
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- Service ports and controls are accessible while unit is operating
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
- Cooling Capacity (BTU/h): 42000
- SEER/EER: 16/13
- Min. Circuit Amps: 22.4
- Max Fuse Size: 35
- Voltage: 197/253
- Liquid Line Size (IN): 3/8
- Suction Line Size (IN): 1-1/8
- Dimensions (WxDxH): 29 x 29 x 36-3/8
- Ship Weight (Lbs.): 237
Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, safe operation, adherence to federal, state and local codes and for valid warranty; see installation guide for more details
Professional installation recommended
