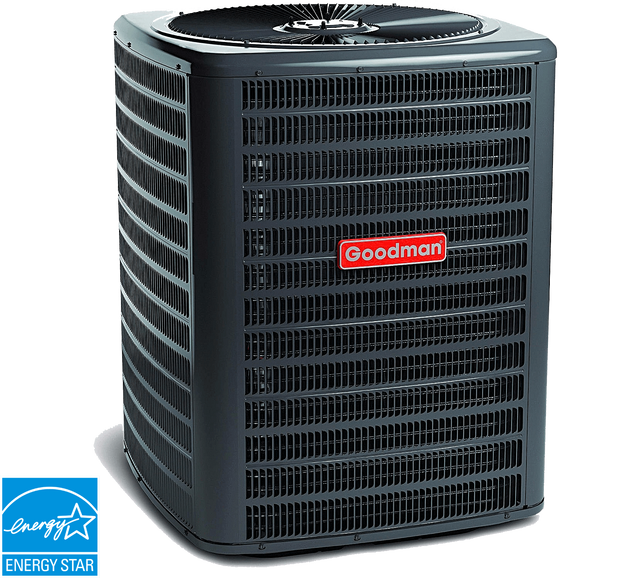

Goodman GSX160611

16 SEER Condenser, 5.0 TON

Known for its innovation, quality and high manufacturing standards, Goodman offers some of the quietest and most efficient heating and cooling units on the market. Thanks to their stringent quality and focus on technology, they can offer consumers reliable, energy-saving systems constructed to international standards. Keep cool in the summer with the Goodman® GSX16 Central Air Conditioning Condenser. Quiet yet powerful, it features a highly energy-efficient 14 to 16 SEER rating. It also uses environmentally-friendly chlorine-free R410a refrigerant that doesn’t contribute to the depletion of the ozone layer and has a cooling capacity of 54,000 BTUs suitable for a home or larger space of up to 3,600 sq. ft..





Standard Features of this Central Air Conditioner

• R-410A environmentally friendly refrigerant
• High-efficiency Copeland® Ultratech scroll compressor
• Factory-installed filter dryer
• Fully charged for 15 feet of tubing length
• Copper tube/enhanced aluminum fin coil
• Sweat connection service valves with easy access to gauge ports
• Contactor with lug connection
• Ground lug connection

Cabinet Features

• Unique Goodman® brand louvered sound control top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories



Cooling Capacity	54000 BTU
Cooling Capacity	5 Tons
SEER	16 SEER
Refrigerant	R-410A
Maximum Overcurrent Protection (Breaker)	45 Amps
Compressor Type	Scroll
Liquid Line Connection Size	3/8 Inches
Suction Line Connection Size	7/8 Inches
TXV Required	No
Noise Level	75 Decibels
Pad Size	36x36 Inches
Shipping Weight	338 lbs
Width	35 1/2 Inches
Depth	35 1/2 Inches
Height	38 1/4 Inches
Voltage	208 / 230 Volts
Frequency	60 Hz
Voltage Phase	1
