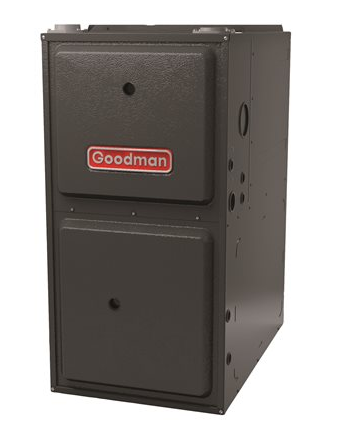

Product Overview
- ComfortNet„¢ Communicating System compatible
- Heavy-duty aluminized steel tubular heat exchanger
- Stainless steel secondary heat exchanger
- Self calibrating modulating gas valve auto-configure for each installation
- Durable silicon nitride igniter
- Quiet variable speed induced draft blower
- Utilizes ComfortNet„¢ communicating, two stage or single stage thermostats
- Self diagnostic control board with constant memory fault code history output to a dual 7 segment display
- Color coded low voltage terminals with provisions for electronic air cleaner and humidifier
- Efficient and quiet variable speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto-Comfort and enhanced dehumidification modes available
- Designed for multi-position installation: upflow, horizontal left or right
- Certified for direct vent (2 pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side venting
- Cenvenient left or right connection for gas and electrical service
- Cabinet air leakage ? 2%
- Heavy guage steel cabinet with durable finish
- Fully insulated heat exchanger and blower section
- Airtight solid bottom or side return with easy cut tabs for effortless removal in bottom air inlet applications
- BTU/H Input: 60,000
- BTU/H Output: 58,200
- Min. Circuit Amps: 8.8
- Height: 34-1/2"
- Width: 17-1/2"
- Depth: 28-7/8"
- Shipping Weight: 118 LBs
Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, safe operation, adherence to federal, state and local codes and for valid warranty; see installation guide for more details.
Professional installation recommended.
