A leading supplier of Heating Ventilation and Air Conditioning products for residential use for over three decades, Goodman Manufacturing is one the most trusted brands in the industry.

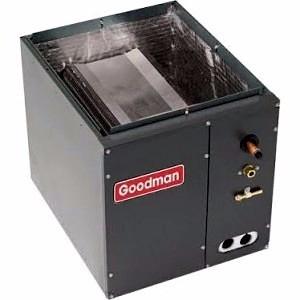

Quiet, efficient and reliable, the Goodman® CHPF Cased Horizontal “A” Coils CHPF3743C6 unit is the ideal accompaniment for split system air conditioners and heat pumps. Made for use with both, it features energy-efficient rifled aluminum tubing construction and is housed in galvanized steel painted with a leather-grain-embossed finish in Architectural Gray. This coil is designed to operate with a heat pump or condenser of two different tonnages.
Dimensions:
W 21 1/8 x H 21 x D 26
Standard Features
- Suitable for use with R-410A and R-22 refrigerants
- Rust-proof, high-temperature, thermoplastic drain pans feature a low water-retention design
- Available with check flowrater expansion device for heat pump or cooling-only applications
- Rifled tubing and corrugated aluminum fin coils
- Foil-faced insulation
Cabinet Features
- High-quality post-paint cabinet
- Split-seam front for easy access
| Configuration |
Horizontal |
|
Cooling Capacity
|
3 - 3.5 Tons |
|
Refrigerant
|
R-22 / R-410A |
|
Number of Rows
|
3 |
|
Liquid Line Connection Size
|
3/8 Inches |
|
Suction Line Connection Size
|
7/8 Inches |
|
Orifice Size
|
0.076 inches |
|
Coil Width
|
21 1/8 inches |
|
Coil Height
|
21 inches |
|
Coil Depth
|
26 inches |
|
Plenum Opening Width
|
19 inches |
|
Plenum Opening Height
|
20 inches |
|
Shipping Weight
|
63 lbs |
