Product Overview
Features

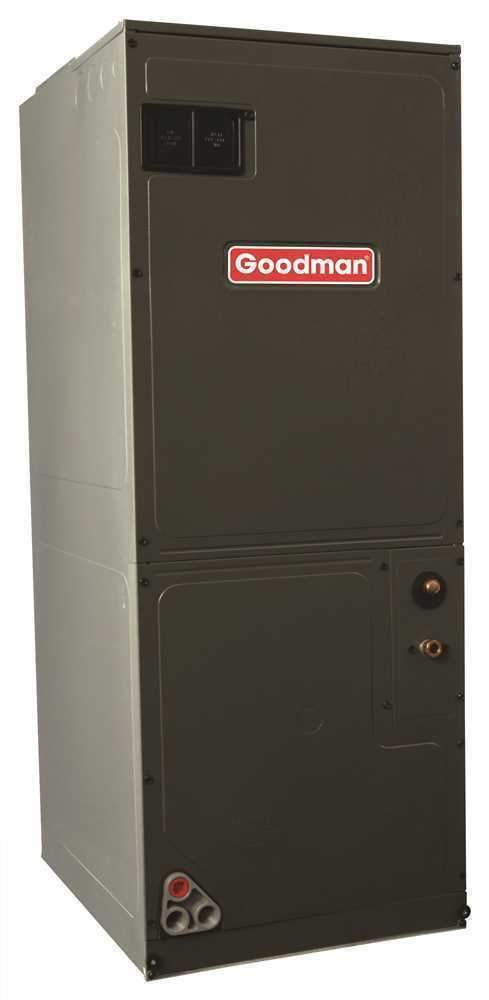

- ARUF multi-position multi-speed air handler
- Check flowrator for cooling and heat pump applications
- Direct drive, multi-speed PSC blower motor
- All aluminum evaporator coil
- Coil mounting track for quick repositioning
- Optimized for use with R-410A refrigerant
- Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- 3kW - 25kW electric heater kits
- Horizontal or vertical configuration capabilities
- Rigid SmartFrame„¢ cabinet
- 21 inch depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw less sides and back helps to reduce condensation when installed in humid locations
- Foil faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain embossed finish
- Glue less cabinet insulation retention
- Tool-less filter access
- AHRI certified; ETL listed
Specifications
- Cooling Capacity (BTU): 24000
- High Rated CFM: 1255
- Min. Circuit Amps: 2.4/2.4
- Max Fuse Size: 15/15
- Voltage: 208/230
- Liquid Line Size (IN): 3/8
- Suction Line Size (IN): 3/4
- Filter Size (IN): 16 x 20
- Dimensions (WxDxH): 17-1/2 x 21 x 45
- Ship Weight (Lbs.): 100
Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, safe operation, adherence to federal, state and local codes and for valid warranty; see installation guide for more details.
Professional installation recommended.
