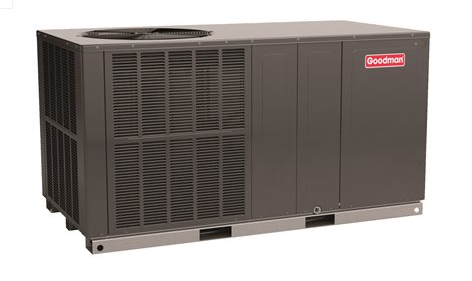

Product Overview
- Energy-efficient compressor
- Multi-speed ECM blower motor
- All-aluminum evaporator coil
- Copper tube/aluminum fin coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- Quiet horizontal discharge
- Electric heat kit available as a field-installed option
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder paint finish
- Fully insulated blower compartment with convenient access panels
- Louvered condenser coil protection
- AHRI certified; ETL listed
Specifications:
- Cooling Capacity (BTU/h): 40,500
- Heating Capacity (BTU/h): 37,600
- SEER: 16
- Min. Circuit Amps: 28
- Max Fuse Size: 45
- Voltage/Phase (60 Hz): 208-230/1
- Dimensions (WxDxH): 66 x 34 x 35
- Weight (Lbs.): 385
Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, safe operation, adherence to federal, state and local codes and for valid warranty; see installation guide for more details.
Professional installation recommended.
