Product Overview

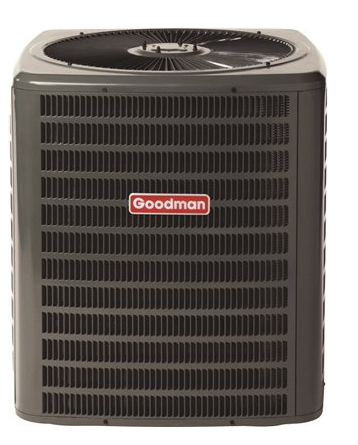

- 18 SEER split system heat pump
- R-410A chlorine free refrigerant
- Two stage Copeland® UltraTech„¢ scroll compressor
- High density foam compressor sound blanket
- Comfort Net„¢ Communications System compatible
- Set up capable with two low voltage wires to outdoor unit
- Color coded terminal strip for non-communicating set up
- SmartShift® technology to ensure quiet, reliable defrost
- Factory installed bi-flow liquid line filter drier, suction line accumulator, compressor crankcase heater, high capacity muffler, and coil and ambient temperature sensors
- Quiet ECM-style condenser fan motor
- Unique sound control top design
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- AHRI certified; ETL listed
- Cooling Capacity(BTU/h): 47000
- Heating Capacity (BTU/h): 47000
- SEER: 18
- Min. Circuit Amps: 29.3
- Max Fuse Size: 50
- Voltage: 208/230
- Liquid Line Size (IN): 3/8
- Suction Line Size (IN): 1-1/8
- Dimensions (WxDxH): 35-1/2 x 35-1/2 x 38-1/4
- Ship Weight (Lbs.): 330
Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, safe operation, adherence to federal, state and local codes and for valid warranty; see installation guide for more details
Professional installation recommended
