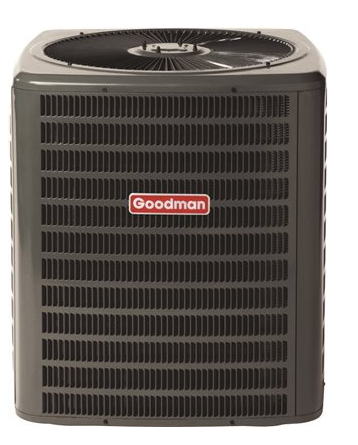

Product Overview
- 16 SEER split system heat pump
- R-410A chlorine free refrigerant
- Two stage Copeland® UltraTech„¢ scroll compressor
- High density foam compressor sound blanket
- Comfort Net„¢ diagnostics built in
- Set up capable with two low voltage wires to outdoor unit
- Color coded terminal strip for non-communicating set up
- SmartShift® technology to ensure quiet, reliable defrost
- Factory installed bi-flow liquid line filter drier, suction line accumulator, compressor crankcase heater, high capacity muffler, and coil and ambient temperature sensors
- Fully charged for 15 ft. of tubing length
- Two speed quiet condenser fan motor
- Sweat connection service valves with easy access to gauge ports
- Wire fan discharge grille
- Steel louver coil guard
- Rust resistant coated screws
- Compact footprint
- Top and side maintenance access
- Single panel access to controls with space provided for field installed accessories
- AHRI certified; ETL listed
- Cooling Capacity(BTU/h): 48000
- Heating Capacity (BTU/h): 48000
- SEER: 16
- Min. Circuit Amps: 27.7
- Max Fuse Size: 45
- Voltage: 208/230
- Liquid Line Size (IN): 3/8
- Suction Line Size (IN): 1-1/8
- Dimensions (WxDxH): 35-1/2 x 35-1/2 x 38-1/4
- Ship Weight (Lbs.): 327
Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, safe operation, adherence to federal, state and local codes and for valid warranty; see installation guide for more details.
Professional installation recommended.
